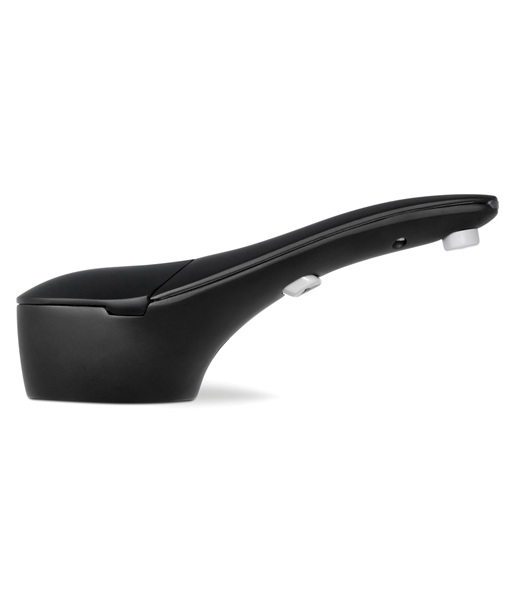

Bobrick B-842 Designer Series Automatic Foam Soap Dispenser in Matte Black
Bobrick B-842 Designer Series Counter-Mounted Automatic Foam Soap Dispenser shall dispense commercially marketed all-purpose bulk foam hand soaps, do not use iodine based or alcohol based soaps or sanitizers. Spout assembly shall be die cast zinc, with one of five finishes. Stem is integrated with spout and shall be Delrin plastic and accommodate up to 2" (50mm) thick counter tops. Unit shall be equipped with oversized funnel shape opening, covered by a 180° rotatable lid with concealed locking mechanism to allow for top filling. Unit shall have LED indicators to show unit is ready for activation. Unit shall have IR Sensor located on PC board housed in a water-resistant plastic housing. Activation Lens shall allow for defined activation range to eliminate chance of false activation during hand washing. Unit equipped with unique two stage foam mixing chambers. Air pump delivers air to foam mixer housing, combining foam soap solution and air to form a preliminary mixture of foam. Soap is then pumped through spout where a second chamber in the nozzle tip houses a mixer cartridge with nylon mesh which delivers a rich lather of foam soap. Control Dial shall allow field adjustment of foam texture. Unit shall be equipped with an Automatic System Flush Button to allow for cleaning and maintenance. Comes with 6V AC adapter.
Spec Sheet
Installation Instruction
Product Overview
The Bobrick B-842 Designer Series Automatic Foam Soap Dispenser is designed for high-traffic environments where reliable soap dispensing is essential. Its top-fill feature simplifies maintenance, while the robust construction ensures it can withstand frequent use. The matte black finish adds a modern touch to any restroom while providing consistent operation for effective hygiene.
Key Features
- Top-fill design for quick and easy refills.
- LED indicators for maintenance alerts and operation readiness.
- Automatic system flush button simplifies cleaning procedures.
- Integrated anti-false activation technology prevents unnecessary dispensing.
- Built-in adjustment dial allows for customization of foam texture.
