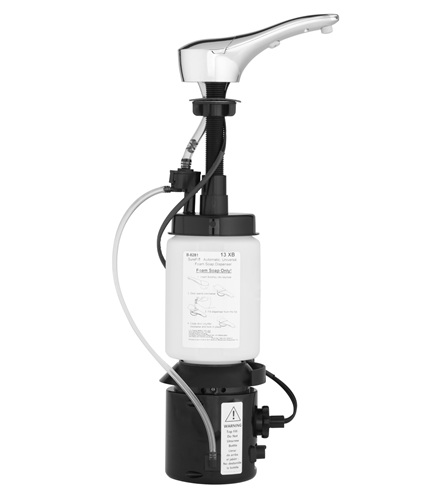

Bobrick B-8281 SureFlo Automatic Foam Soap Dispenser for Existing 1" Hole

Bobrick B-8281 counter-mounted, automatic, top-fill bulk foam soap dispenser shall dispense commercially marketed all-purpose bulk foam hand soaps. Spout assembly shall be bright polished chrome plated ABS plastic with integral stem to accommodate up to 2" (50mm) thick counter tops. 1" stem allows unit to be retrofit into an existing 1" diameter counter hole. Unit shall be equipped with oversized funnel shape opening, covered by a 180° rotatable lid with concealed locking mechanism to allow for top filling. Unit shall have LED indicators to show when unit has been activated and low battery life. Unit shall have IR Sensor located on PC board housed in a water-resistant plastic housing. Activation Lens shall allow for defined activation range to eliminate chance of false activation during hand washing. Unit equipped with unique two stage foam mixing chambers. Air pump delivers air to foam mixer housing, combining foam soap solution and air to form a preliminary mixture of foam. Soap is then pumped through spout where a second chamber in the nozzle tip houses a mixer cartridge with nylon mesh which delivers a rich lather of foam soap. Control Dial shall allow field adjustment of foam texture. Unit shall be equipped with an Automatic System Flush Button to allow for cleaning and maintenance. Comes with Battery Pack. Battery Pack uses 4 Alkaline "D" cell batteries (not included). Optional 6V AC Adapter with U.S. Plug available, order Part No. 3974-57.

Spec Sheet
Installation Instruction

Product Overview

The Bobrick B-8281 SureFlo Automatic Foam Soap Dispenser is designed for ease of use in commercial restrooms. It accommodates a variety of all-purpose bulk foam hand soaps, ensuring compatibility with your preferred soap brands. The top-fill design makes maintenance and refilling straightforward while the robust chrome-plated spout assembly provides durability. Its unique foam mixing capability delivers a rich lather, enhancing user satisfaction while ensuring a cost-effective solution for high-traffic environments.

Key Features

• Top-fill design for easy maintenance and refilling.
• LED indicators for activation and battery status monitoring.
• Rotatable lid with concealed locking mechanism for secure filling.
• Two-stage foam mixing for a rich soap lather.
• Control dial for adjusting foam texture based on user preference.
