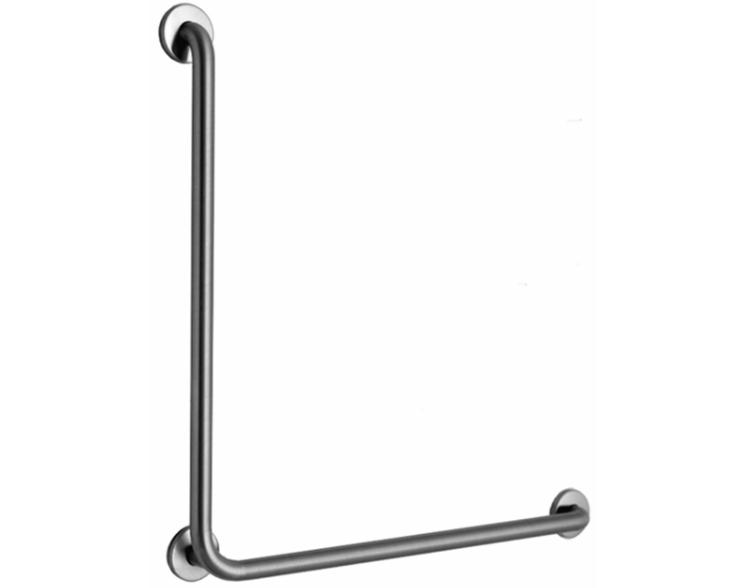

Bobrick B-5898.99 90-Degree Peened Grab Bar 30" x 30"

Bobrick B-5898.99 grab bar shall be type-304 stainless steel with satin-finish, slip-resistant surface. Grab bar shall have 18-gauge (1.2mm) wall thickness and 1-1/4" (32mm) outside diameter. Clearance between the grab bar and wall shall be 1-1/2" (38mm). Concealed mounting flanges shall be 1/8" (3mm) thick stainless steel plate, 2" x 3-1/8" (50 x 80mm), and equipped with two screw holes for attachment to wall. Flange covers shall be 22-gauge (0.8mm) stainless steel, 3-1/4" (85mm) diameter, and shall snap over mounting flanges to conceal mounting screws and/or WingIt fasteners. Ends of grab bar shall pass through concealed mounting flanges and be heliarc welded to form one structural unit. Grab bar shall comply with accessible design (including ADAAG in the U.S.A.) for structural strength.

Bobrick B-5898.99 Spec Sheet

Product Overview

The Bobrick B-5898.99 90-degree grab bar is designed for enhanced safety and support in commercial restrooms. Featuring a durable stainless steel construction with a peened finish, this grab bar is ideal for facilities where accessibility and user comfort are essential. Its robust structure and secure mounting offer peace of mind for users, making it an excellent choice for high-traffic areas.
