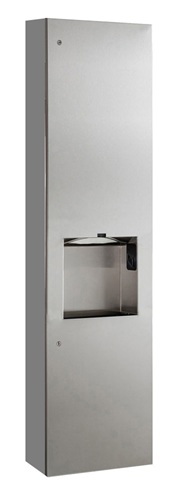

Bobrick B-380309 230V TrimLine 3in1 Combination Unit
Bobrick B-380309 TrimLine design, space-saving cabinet depth, and satin finish stainless steel door compliments any washroom from Class-A offices to fine restaurants. Door has 90° return, conceals flange. Dispenses 600 multi-fold or 450 C-fold paper towels. Built-in TowelMate. Removable leak-proof, 3.6-gal (13.7-L) waste container.
Features:
- Cabinet — 18-8, type-304, heavy-gauge stainless steel. All-welded construction. Exposed surfaces have satin finish. The activation sensor mounts on a concealed panel.
- Door — 18-8, type-304, 18-gauge (1.2mm) stainless steel. 9/16" (14mm) 90° return for maximum rigidity. Secured to cabinet with a concealed, full-length stainless steel piano-hinge. Equipped with a stainless steel cable door-swing limiter and two tumbler locks keyed like other Bobrick washroom accessories.
- Paper Towel Dispenser — 18-8, type-304, 22-gauge (0.8mm) stainless steel. Equipped with 90° return towel guide angle to prevent paper towels from falling forward out when door is opened for servicing. Rounded towel tray has hemmed opening to dispense paper towel without tearing. Capacity: 600 multifold or 450 C-fold paper towels.
- TowelMate™ Towel Rod Assembly — Consisting of a round Nylon Rod and (2) stainless steel Rod Screws for attachment, is field replaceable. Stainless steel Stop Screws (2) lock TowelMate Towel Rod assembly in place.
- Waste Bin — Leak-proof rigid molded plastic. Removable for servicing. Capacity: 3.6 gal. (13.7 liters).
Dryer:
- Cover — 18-8, type-304, 22-gauge (0.8mm) stainless steel. Cover is secured to mounting base with two pan-head stainless steel screws.
- Mounting Base — 20-gauge (1.5mm)plated steel with three 0.236" (6mm) diameter mounting holes.
- Motor — Universal, 1/7 hp, 8000 rpm, on resilient mounting. Sealed ball bearing at drive-shaft end and self-lubricating sleeve bearing at nondrive end. Equipped with automatic thermal-overload switch and a thermistor.
- Fans — Two balanced, double-inlet centrifugal fans are mounted on motor shaft; directs airflow over heating element at 71 cfm.
- Fan Housing — Fire-retardant black molded plastic.
- Heating Element — Two coiled nickel-chrome heating elements are mounted in mica frame and protected by automatic thermal overload switches. Heating elements heat air without hot spots — inaccessible to vandals.
- Electronic Control — Infrared emitter receiver sensor, activation sensor PCB that is connected by two shielded wires to the dryer PCB. The sensor PCB is enclosed in a plastic housing and has an LED that flashes green when the dryer is ready, is solid green when the dryer is running and is solid red when the dryer is not ready to run.
- Air Management System — Consists of two plastic ducts and two black plastic air nozzles attached to the cabinet below the towel tray.
Specifications:
- 115V: Automatic Hand Dryer: 110-120V AC, 8.0 Amp, 920 Watts, 50/60 Hz, Single Phase, CUListed.
- 230V: Automatic Hand Dryer: 208-240V AC, 3.6-4.2 Amp, 750-1000 Watts, 50/60 Hz, Single Phase, CE marked, CUListed, Meets Electrical Safety Requirement AS/NZS 600335.
1-Year Limited Warranty: This warranty is limited to the repair or exchange of defective dryer parts at the option of Bobrick.
