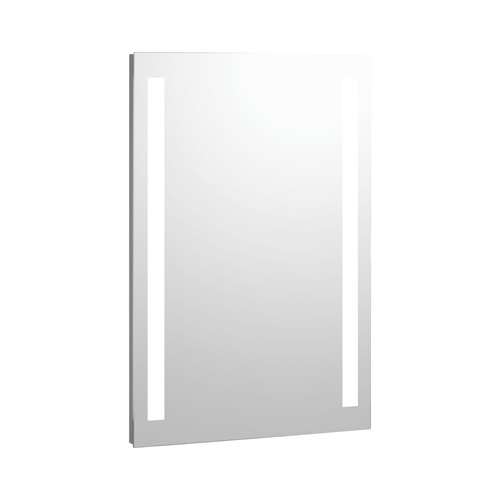

Bobrick B-169 2448 LED Sidelit Mirror, 24 W x 48 H

Bobrick B-169 mirrors shall have a 1mm thick anodized AL6061 frame. Integral cULus recognized power supply must have 24V output and 110 – 277V input along with 0-10V dimming option. Reflective surface shall be 3/16" (5mm) thick and covered with a 0.14mm PVC film backer with frosted sandblasting. Lead free silver backing shall exceed ISO 9227:2012 and exceed 120-hour corrosion testing. Aluminum mounting panel shall contain key hole slots both top and bottom to provide easy installation and prevent the mirror from pulling away from the wall.

Spec Sheet
Installation Instruction

Product Overview

The Bobrick B-169 2448 LED Sidelit Mirror, with its sleek 24 W x 48 H dimension, enhances commercial restroom aesthetics while ensuring durability and practicality. Made with a powerful anodized AL6061 frame, this mirror offers a blend of functionality and style. The mirrored surface and integrated lighting provide optimal visibility, supporting effective self-care in busy environments.

Key Features

Rugged construction minimizes the chance of damage during high foot traffic.
Integrated lighting ensures clear visibility for users, improving functionality.
Corrosion-resistant backing promotes longevity, essential for commercial use.
Easy installation method reduces downtime for facility management.
Versatile size fits various restroom layouts and enhances overall ambiance.
