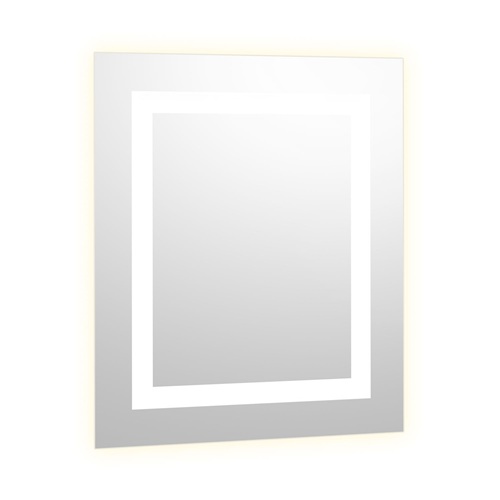

Bobrick B-168 2739 LED Backlit Mirror, Inner Etched, 27 W x 39 H
Bobrick B-168 mirrors shall have a 1mm thick anodized AL6061 frame. Integral UL recognized power supply must have 24V output and 110 – 277V input along with 0-10V dimming option. Reflective surface shall be 3/16" (5mm) thick and covered with a 0.14mm PVC film backer with frosted sandblasting. Lead free silver backing shall exceed ISO 9227:2012 and exceed 120-hour corrosion testing. Aluminum mounting panel shall contain key hole slots both top and bottom to provide easy installation and prevent the mirror from pulling away from the wall.
Spec Sheet
Installation Instruction
Product Overview
The Bobrick B-168 LED Backlit Mirror is engineered for commercial washrooms with its impressive size and sturdy materials. This mirror combines functionality and durability, showcasing a high-grade aluminum frame and a robust reflective surface. Designed to withstand the demands of busy facilities while enhancing user experience, it offers reliable performance day after day.
Key Features
- Durable anodized AL6061 frame ensures long-lasting performance.
- Built-in UL recognized power supply for stable operation.
- Frosted sandblasted back for a gentle glow and modern aesthetics.
- Easy installation with keyhole slots for secure mounting.
- Meets strict ISO corrosion standards for extended mirror life.
