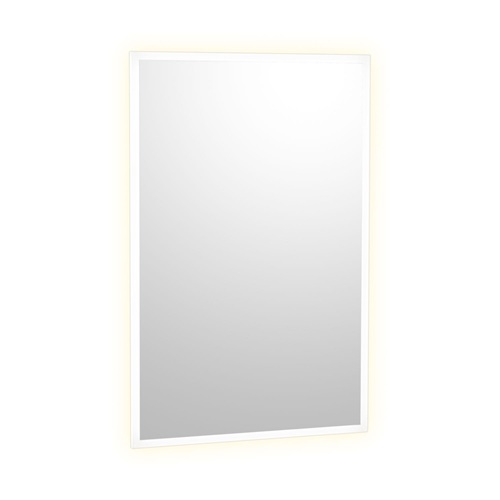

Bobrick B-167 2436 LED Backlit Mirror, Outer Etched, 24 W x 36 H
Bobrick B-167 mirrors shall have a 1mm thick anodized AL6061 frame with 12mm thick translucent acrylic edge. Integral cULus recognized power supply must have 24V output and 110 – 277V input along with 0-10V dimming option. Reflective surface shall be 3/16" (5mm) thick and covered with a 0.14mm PVC film backer with frosted sandblasting. Lead free silver backing shall exceed ISO 9227:2012 and exceed 120-hour corrosion testing. Aluminum mounting panel shall contain key hole slots both top and bottom to provide easy installation and prevent the mirror from pulling away from the wall.
Spec Sheet
Installation Instruction
Product Overview
The Bobrick B-167 LED Backlit Mirror offers a robust construction combined with aesthetic functionality, making it suitable for high-traffic commercial restrooms. With its durable aluminum frame and finely crafted reflective surface, this mirror withstands daily use while maintaining a premium appearance. A dimmable lighting feature enhances visibility and user experience, ensuring optimal lighting conditions in any restroom environment.
Key Features
- Durable 1mm thick anodized aluminum frame designed for long-lasting performance
- Integrated cULus recognized power supply for reliable operation
- 24V output with a wide input range from 110 to 277V for versatile installation
- Frosted sandblasted surface treatment for improved visual comfort
- Easy installation with keyhole slots for secure mounting
