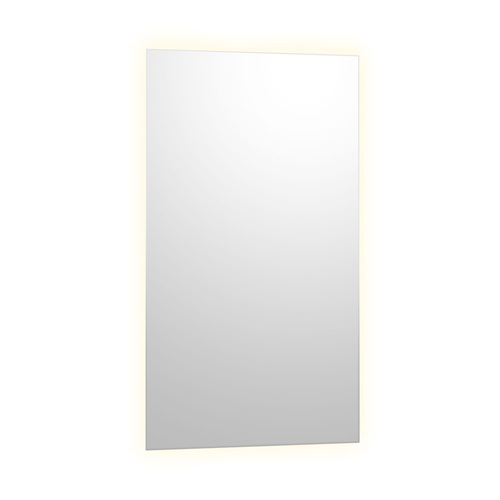

Bobrick B-164 1830 LED Backlit Mirror 18" x 30"

Bobrick B-164 mirrors shall have a 1mm thick anodized AL6061 frame. Integral cULus recognized power supply must have 24V output and 110 – 277V input along with 0-10V dimming option. Reflective surface shall be 3/16" (5mm) thick and covered with a 0.14mm PVC film backer with frosted sandblasting. Lead free silver backing shall exceed ISO 9227:2012 and exceed 120-hour corrosion testing. Aluminum mounting panel shall contain key hole slots both top and bottom to provide easy installation and prevent the mirror from pulling away from the wall.

Spec Sheet
Installation Instruction

Product Overview

The Bobrick B-164 1830 LED Backlit Mirror is designed for commercial restroom settings, offering robust construction and functional design. Its durable anodized aluminum frame ensures longevity, while the integrated LED lighting provides consistent illumination for improved visibility and enhanced user experience.

Key Features

Durable anodized aluminum frame for extended life in high-traffic areas.
Integrated LED lighting ensures optimal visibility for all users.
0-10V dimming option allows for adjustable brightness based on user preference.
Corrosion-resistant silver backing exceeds industry standards for longevity.
Easy installation with key hole slots in aluminum mounting panel for straightforward setup.
