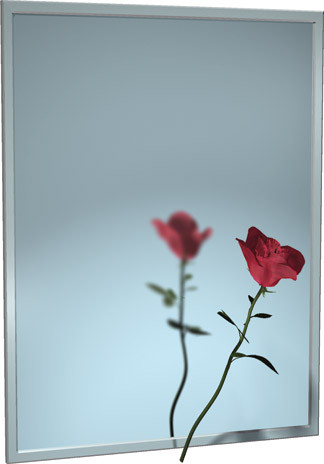

ASI 0620-B1836 Chan-Lok Tempered Glass Mirror, 18" W x 36" H
The ASI 0620-B1836 is a surface-mounted, 18" W x 36" H Chan-Lok mirror with tempered glass and a one-piece satin-finish stainless steel channel frame. The frame encases the mirror and backing, with tight mitered corners; theft-resistant locking screws secure the mirror to its wall brackets.
Model specifications
- Mirror: 1/4" polished tempered glass with two silver coats, hermetically sealed with electrolytic copper plating; the back is protected with heavy waterproof paint.
- Frame: 20-gauge Type 304 stainless steel with a satin finish, formed as a one-piece channel around the mirror and backing.
- Mounting: Surface-mounted on H wall brackets with a theft-resistant locking screw.
Installation guidance
Install the H wall brackets level and plumb with #8 or #10 pan-head screws, which are by others. Start the supplied #6-32 locking screw at the bottom before hanging the mirror, then hang it on the brackets and tighten the screw. ASI's installation guidance for the 2010 ADA Accessibility Standards and 2015 ABA Standards states that the bottom edge of the reflecting surface should be no higher than 40" above the finished floor; confirm project requirements for the installation.
