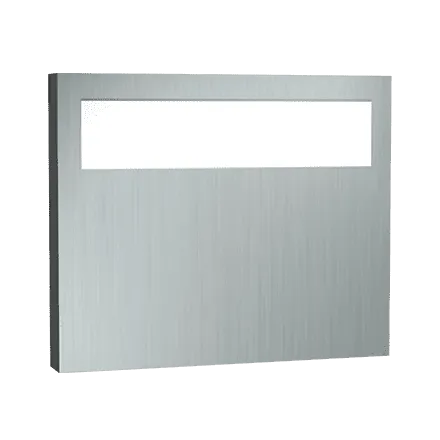

ASI 0477-SM Surface-Mounted Toilet Seat Cover Dispenser
The ASI 0477-SM is a surface-mounted dispenser for 250 standard single- or half-fold paper toilet seat covers. Its satin-finish Type 304 stainless steel cabinet is 1-1/4 inches deep, making the published dimensions useful when checking wall clearance.
Capacity and construction
- Capacity: 250 standard single- or half-fold paper toilet seat covers.
- Cabinet: 22-gauge Type 304 stainless steel with a satin finish.
- Door: heavy-duty stainless steel piano hinge with a tumbler lock.
- Overall dimensions: 15-3/4 inches wide x 11 inches high x 1-1/4 inches deep.
Mounting and refill
Surface-mount the unit to a wall or partition with two #10 x 1-1/2-inch self-threading screws; mounting screws are by others. Covers feed until the supply is depleted. Reload manually with a full box through the concealed opening at the bottom, on a schedule determined by maintenance needs.
ASI recommends positioning the dispenser slot no higher than 54 inches above the finished floor where clear-floor side reach is provided, or 48 inches where only clear-floor forward reach is provided. These are manufacturer installation guidelines, not a blanket compliance determination.
