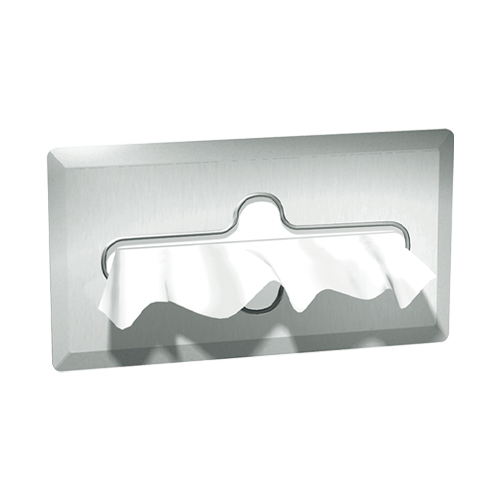

ASI 0259-SS Recessed Facial Tissue Dispenser
The ASI 0259-SS is a recessed facial tissue dispenser for prepared wall openings, distinguished by a satin-finish Type 304 stainless steel faceplate and capacity for 300 single-ply or 150 double-ply tissues.
Capacity and installation details
- Faceplate: 22-gauge Type 304 (18-8) stainless steel with satin finish.
- Capacity: 300 single-ply or 150 double-ply tissues; tissues are manually retrieved through the smooth dispensing slot.
- Rough wall opening: 11-3/8 in. W x 5-1/8 in. H. Confirm the wall cavity and opening before ordering; mounting screws are by others.
For general utility installation, the manufacturer recommends mounting 48–60 in. above finished floor, measured from the top of the dispenser. The manufacturer’s 2010 ADA Accessibility Standards guidance sets a maximum dispensing-slot height of 54 in. AFF for clear-floor side reach, 48 in. for clear-floor forward reach, or 46 in. for side reach over an obstruction. Confirm which placement applies to the restroom layout; this is manufacturer installation guidance, not a blanket compliance determination.
How to refill
Disengage the cover hooks from the body clips, load a fresh supply box, feed the first sheet through the smooth slot, and replace the cover. Replenish according to maintenance needs.
