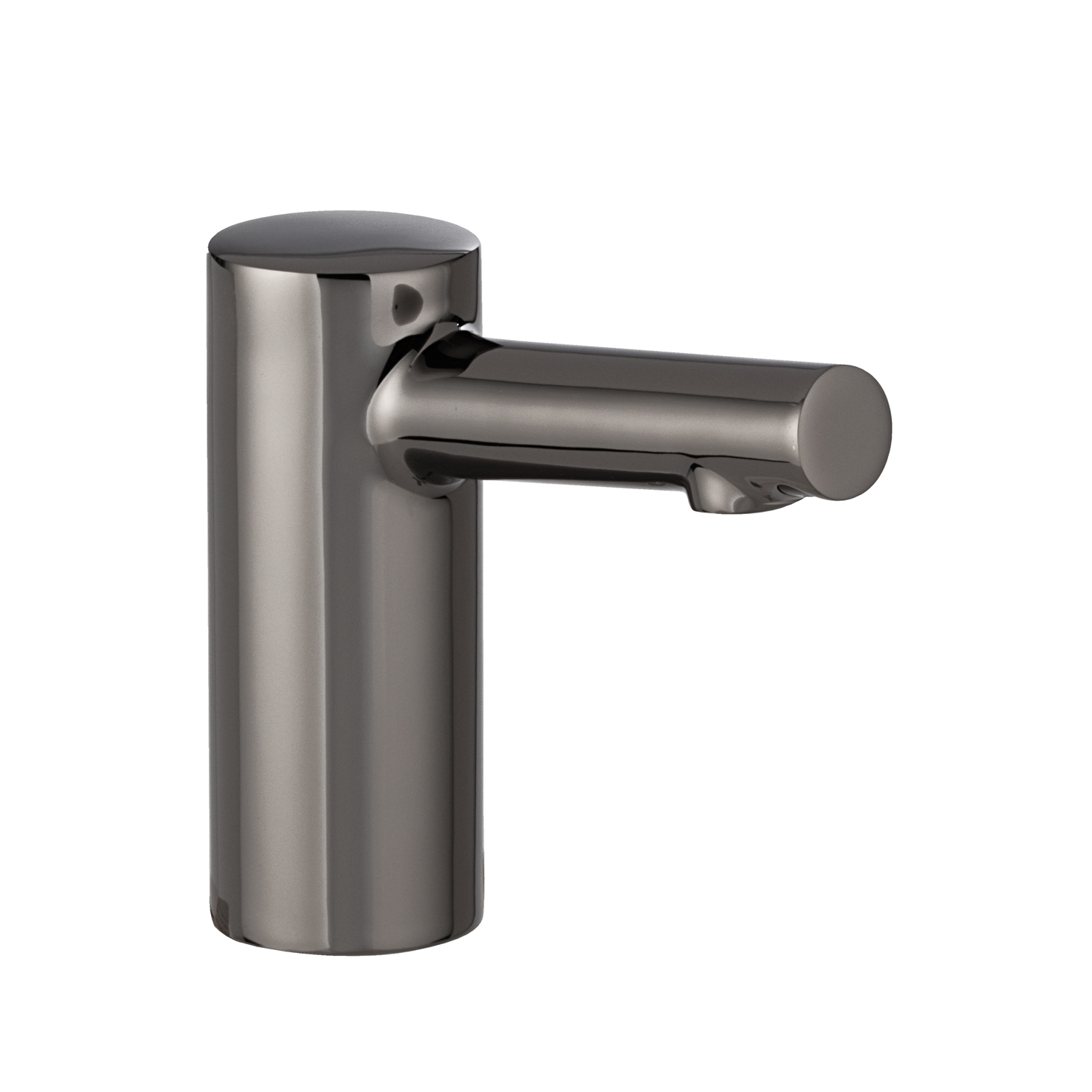

Bobrick B-9911 Fino Automatic Faucet

The Bobrick B-9911 is a high-performance, touch-free automatic faucet engineered for prestigious commercial washrooms that demand a blend of sophisticated aesthetics and heavy-duty durability. Constructed from one-piece heavy-duty cast brass with a premium Polished Graphite finish, this ADA-compliant faucet utilizes advanced sensor technology to ensure a hygienic, hands-free user experience while maximizing water efficiency.

Technical Specifications & Performance

Superior Construction: Features a one-piece heavy-duty cast brass spout assembly available in a high-luster Polished Graphite finish.
Advanced Sensing: Utilizes a built-in IR Time of Flight sensor with sophisticated automatic user detection to prevent false activations and optimize water savings.
Water Efficiency: Delivers a flow rate of 0.5 GPM (1.9 LPM) through a vandal-resistant, non-aerated spray device.
Temperature Control: Equipped with a pre-installed temperature mixing valve that includes integral check valves for precise adjustment of water temperature.
Dual Power Versatility: The unit is powered by either four "AA" batteries (included) or an AC adapter with a 72" (1830mm) power cable.
Operating Parameters: Designed for a water pressure range of 20–125 PSI (138–862kPA) and a water temperature range of 40°F to 140°F (4.44°C to 60°C).

Installation & Compatibility Requirements

Mounting Specifications: Designed for installation in mounting holes ranging from 1" (25mm) to 1.5" (38mm) in diameter.
Counter Thickness: Accommodates countertops and mounting surfaces up to a maximum thickness of 2.25" (57mm).
Supply Connections: Includes two 18" (457mm) flexible stainless steel supply hoses with 3/8" compression connections for direct installation to the mixing valve.
Anti-Rotation Protection: Features an anti-rotation pin specifically for use on stainless steel sinks to anchor the faucet and prevent unit movement.

Intelligent Operational Settings

The B-9911 features a water-resistant control module box with internal switches that allow for field customization of key operational settings:

Auto Time-Out Adjustment: Allows for adjustment of the flow duration (factory set at 15 seconds) to prevent accidental overflows and excessive water use.
Water Shut-Off Delay: Provides the option to adjust the period for how long water continues to flow after an object is removed from the sensor range.
Auto-Flush Mode: When enabled, flushes the faucet for 30 seconds every 12 hours after the last use to maintain water hygiene in the lines.
Metering Mode: Establishes a continuous 15-second water flow regardless of object presence or time-out settings.
Status Monitoring: An integrated LED on the control module provides battery status, with a red flash every 2 seconds indicating low battery and a constant red light indicating battery depletion.
